What are Pcd Turning Inserts and their Benefits?
Pcd Turning Inserts are essential tools in modern machining. These inserts, made from polycrystalline diamond, offer unique advantages. They enhance performance and prolong tool life.
Using Pcd Turning Inserts can greatly reduce wear. This is important in high-speed machining environments. They provide superior cutting abilities, making them favored in industries like automotive and aerospace.
Despite the benefits, challenges exist. Pcd Turning Inserts can be more expensive than traditional tools. This cost may deter some businesses. However, considering the long-term savings, they often prove to be a wise investment. It’s crucial to evaluate specific machining needs before choosing these inserts.

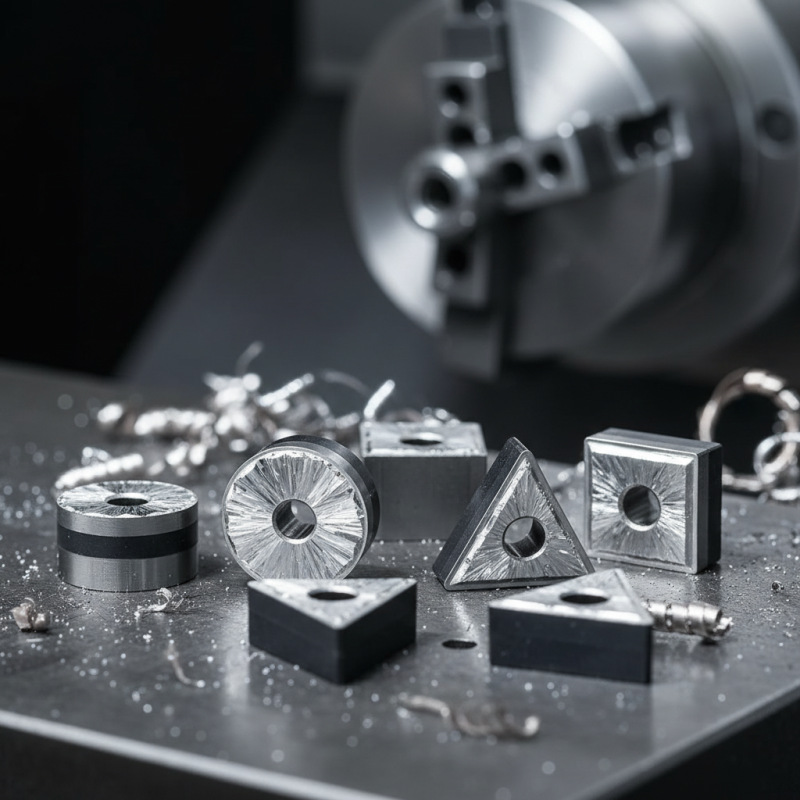

What are PCD Turning Inserts?
PCD (Polycrystalline Diamond) turning inserts have gained attention in machining industries. These specialized tools are crafted from diamond crystals, making them incredibly hard and durable. They excel in a variety of materials, especially non-ferrous metals. Many manufacturers use PCD inserts for their resistance to wear. This results in a longer tool life, reducing costs related to tool changes.
Employing PCD turning inserts comes with noticeable benefits. For one, they achieve superior surface finishes and precise tolerances. This precision is critical in industries where quality is paramount. The inserts can handle high speeds without significant thermal damage. Still, the initial investment is higher than traditional materials. Some also find the sensitivity of PCD to be a drawback in tough applications.
Machinists must consider specific guidelines when using PCD inserts. Understanding the correct cutting parameters is essential for optimal performance. While they can offer exceptional results, not all applications may benefit. It is crucial to assess factors like material type and machining conditions. Sometimes, the advantages may not justify the extra cost.
The Composition and Structure of PCD Inserts
PCD (polycrystalline diamond) inserts are a revolutionary tool in machining. The structure of PCD inserts is quite intricate. They are composed of diamond grains that are bonded together under high pressure and temperature. This composition results in a material that is exceptionally hard and wear-resistant. The unique structure allows for superior performance in various machining applications.
When using PCD inserts, consider the type of material you are machining. Aluminum and copper alloys often yield the best results with PCD tools. However, PCD may not be suitable for all materials. Testing is essential. Some users report issues when cutting harder metals, leading to premature wear.
**Tip:** Regularly monitor the wear of your PCD inserts. Small wear can greatly affect performance. Don't overlook this. Also, ensure you have the right feed and speed settings for the material you’re working with. Fine-tuning these parameters can lead to enhanced surface finish and tool lifespan.
What are PCD Turning Inserts and their Benefits? - The Composition and Structure of PCD Inserts
| Dimension |
Description |
| Material Composition |
Polycrystalline Diamond (PCD) is made of small diamond particles bonded together with a metallic binder. |
| Hardness |
PCD is one of the hardest materials available, providing excellent wear resistance. |
| Applications |
Used in machining non-ferrous materials such as aluminum, copper, and composites. |
| Benefits |
Long tool life, high productivity, and superior surface finish compared to traditional cutting tools. |
| Thermal Conductivity |
Excellent thermal conductivity, which helps in dissipating heat during machining. |
| Cost Efficiency |
Though initial costs are high, PCD inserts can lead to lower overall machining costs due to their durability. |
Advantages of Using PCD Turning Inserts in Manufacturing
PCD (Polycrystalline Diamond) turning inserts are becoming essential in the manufacturing sector. They offer significant advantages, particularly in precision machining. According to a recent industry report, PCD inserts can increase tool life by over 300% compared to traditional carbide tools. This increase means fewer tool changes and less downtime in production.
One key benefit of PCD inserts is their ability to machine various materials, including aluminum and composites. They maintain sharp cutting edges, which leads to excellent surface finishes. A study indicates that using PCD tools can improve productivity by up to 40% due to reduced cycle times. However, the initial cost of PCD inserts can be a hurdle for some manufacturers. It's essential to evaluate cost versus benefit carefully.
Another significant factor is the wear resistance of PCD. These inserts can withstand high temperatures and abrasive materials. However, they can be brittle, making them susceptible to chipping if not used correctly. Manufacturers must be mindful of the cutting conditions to maximize the lifespan of PCD tools. The right setup is crucial. Despite these challenges, the advantages often outweigh the potential downsides.
Benefits of Using PCD Turning Inserts in Manufacturing
Applications of PCD Inserts Across Industries
PCD inserts, made from polycrystalline diamond, are revolutionizing various industries. Their applications range from automotive to aerospace. These inserts excel in cutting hard materials, making them a preferred choice. In manufacturing, they enhance efficiency and reduce wear.
In the automotive industry, PCD inserts are used for machining engine components. They ensure precision and speed. For instance, they can efficiently cut aluminum, often used in lightweight vehicle designs. This precision leads to better fuel efficiency and performance.
Tip: Regularly check your PCD inserts for wear. Even slight degradation can affect performance.
In the aerospace sector, durability is key. PCD inserts allow for safe and accurate fabrication of parts. They handle tough materials like titanium easily. This capability is essential for ensuring safety in flight.
Tip: Consider using coolant when machining with PCD inserts. It can prolong tool life and maintain performance.
The versatility of PCD inserts also extends to electronics. They are vital in producing circuit boards, allowing for delicate and precise cuts. This results in high-quality electronic products that meet modern demands.
Comparison of PCD Inserts with Other Cutting Tools
PCD (Polycrystalline Diamond) turning inserts are gaining traction in modern machining. Compared to traditional cutting tools, PCD inserts offer significant advantages. They outperform carbide tools in terms of wear resistance. According to a report by the American Society for Precision Engineering, PCD inserts can last up to 10 times longer than conventional counterparts in specific applications. This longevity leads to less frequent tool changes and reduced downtime.
When examining PCD inserts versus other tools, one key aspect is cost-effectiveness. Though initial investment is higher, the extended tool life can reduce overall costs in the long run. Studies indicate that manufacturers can save approximately 30% in costs when utilizing PCD inserts for certain materials like aluminum and composites. A critical reflection here is the necessity for proper application; using PCD in unsuitable scenarios can lead to suboptimal performance.
Tips for maximizing the effectiveness of PCD inserts include selecting the right geometry for your specific job. Proper machine settings can also enhance their performance. Additionally, consider your workpiece material; PCD excels with non-ferrous metals but isn’t ideal for ferrous materials. Fine-tuning these factors can significantly impact productivity and efficiency in the shop.
